UNI 5730 Stud Bolt Weights
UNI 5730 Stud Bolt Weights

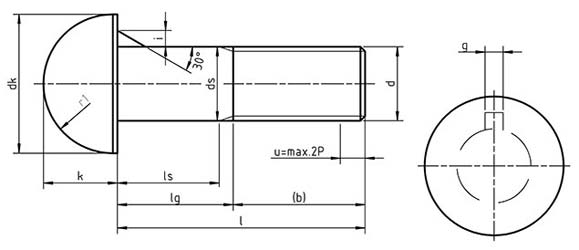

Weights for UNI 5730 Half coach Bolts
| d | p | b | dk | ds | k | i | g | r1 |
|---|---|---|---|---|---|---|---|---|
| M8 | 1.25 | 22-28 | 16.55 | 8 | 6.38 | 2.3 | 3 | 8.9 |
| M10 | 1.5 | 26-32 | 19.65 | 10 | 7.45 | 2.7 | 3.2 | 10.5 |
| M12 | 1.75 | 30-36 | 24.65 | 12 | 9.65 | 3.2 | 3.6 | 13.3 |
| M16 | 2 | 38-57 | 30.65 | 16 | 11.75 | 3.5 | 4.2 | 15.8 |
