UNI 8833 A Stud Bolt Dimensions
UNI 8833 A Spring cotters of a Bolts

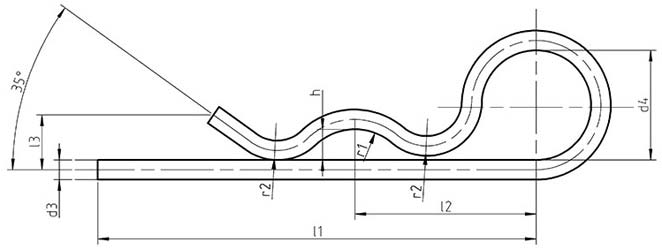

Dimensions for UNI 8833 A Spring cotters of a Bolts
| d | D | L | l1 |
|---|---|---|---|
| 2.25 | 20 | 42 | 24 |
| 3.6 | 20 | 64 | 32 |
| 4.5 | 25 | 80 | 39 |
| 5.6 | 25 | 91 | 45 |
| 6.3 | 30 | 125 | 56 |
| 7 | 30 | 150 | 63 |
| d | D | L | l1 |
|---|---|---|---|
| 2.25 | 20 | 42 | 24 |
| 3.6 | 20 | 64 | 32 |
| 4.5 | 25 | 80 | 39 |
| 5.6 | 25 | 91 | 45 |
| 6.3 | 30 | 125 | 56 |
| 7 | 30 | 150 | 63 |
