ISO 4017 Stud Bolt Dimensions

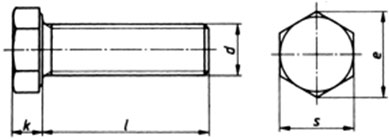

ISO 4017 Hexagon Head Bolts with threads upto Head
Dimensions of Hexagon Head Bolts with threads upto Head
| Dimensions |
s |
k |
a.sub.max |
| M 2 |
4 |
1.4 |
1.2 |
| M 3 |
5.5 |
2 |
1.5 |
| M 4 |
7 |
2.8 |
2.1 |
| M 5 |
8 |
3.5 |
2.4 |
| M 6 |
10 |
4 |
3 |
| M 7 |
11 |
4.8 |
3 |
| M 8 |
13 |
5.3 |
3.75 |
| M 10 |
16 |
6.4 |
4.5 |
| M 12 |
18 |
7.5 |
5.25 |
| M 14 |
21 |
8.8 |
6 |
| M 16 |
24 |
10 |
6 |
| M 18 |
27 |
11.5 |
7.5 |
| M 20 |
30 |
12.5 |
7.5 |
| M 22 |
34 |
14 |
7.5 |
| M 24 |
36 |
15 |
9 |
| M 27 |
41 |
17 |
9 |
| M 30 |
46 |
18.7 |
10.5 |
| M 33 |
50 |
21 |
10.5 |
| M 36 |
55 |
22.5 |
12 |
| M 39 |
60 |
25 |
12 |
| M 42 |
65 |
26 |
13.5 |
| M 45 |
70 |
28 |
13.5 |
| M 48 |
75 |
30 |
15 |
| M 52 |
80 |
33 |
15 |
| M 56 |
85 |
35 |
16.5 |
| M 64 |
95 |
40 |
18 |
