ISO 15072 Stud Bolt Dimensions
ISO 15072 Hexagon bolts with flange with metric fine pitch thread

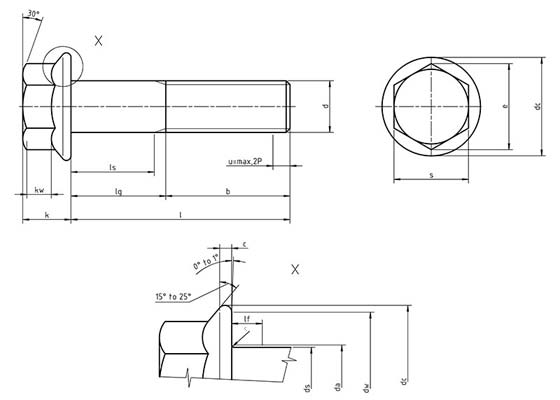

Dimensions for ISO 15072 Hexagon bolts with flange with metric fine pitch thread
| thread d | b min | dc max | ds max | k max | s max | h min |
|---|---|---|---|---|---|---|
| M 8x1 | 22 | 17 | 8 | 8.5 | 10 | 1.2 |
| M 10x1 | 26 | 20.8 | 10 | 9.7 | 13 | 1.5 |
| M 10x1.25 | 26 | 20.8 | 10 | 9.7 | 13 | 1.5 |
| M 12x1.25 | 30 | 24.7 | 12 | 12.1 | 15 | 1.8 |
| M 12x1.5 | 30 | 24.7 | 12 | 12.1 | 15 | 1.8 |
| M 16x1.5 | 38 | 32.8 | 16 | 15.2 | 21 | 2.4 |
