DIN 525 Stud Bolt Dimensions

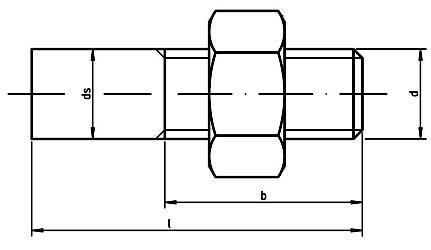

DIN 525 Welding studs
Dimensions for DIN 525 Welding studs
| Thread Size d |
p |
b |
ds |
l |
weight kg/1000pcs |
| nom = max |
nom |
min |
max |
| M6 |
1 |
35 |
6 |
130 |
128 |
132 |
26 |
| M8 |
1.25 |
40 |
8 |
140 |
138 |
142 |
49.2 |
| M10 |
1.5 |
45 |
10 |
150 |
148 |
152 |
83.5 |
| M12 |
1.75 |
55 |
12 |
170 |
168 |
172 |
135 |
| M16 |
2 |
65 |
16 |
190 |
187.7 |
192.3 |
273 |
| M20 |
2.5 |
75 |
20 |
210 |
207.7 |
212.3 |
473 |
| M24 |
3 |
85 |
24 |
230 |
227.7 |
232.3 |
745 |
| M30 |
3.5 |
105 |
30 |
270 |
267.4 |
272.6 |
1370 |
| M36 |
4 |
125 |
36 |
310 |
307.4 |
312.6 |
2280 |
| M42 |
4.5 |
145 |
42 |
350 |
347.1 |
252.9 |
3510 |
| M48 |
5 |
165 |
48 |
390 |
387.1 |
392.9 |
5110 |
