DIN 2510 Type ZU Stud Bolt Dimensions

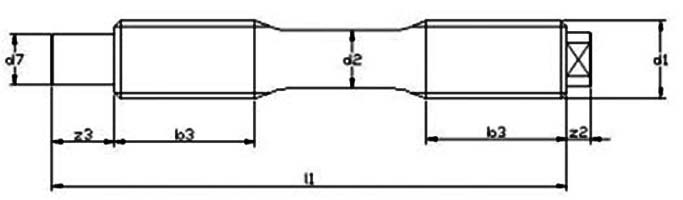

DIN 2510 Form ZU Stud Bolts
DIN 2510 Form ZU Stud Bolt Dimensions
| Size (d1) |
d2 |
d3 |
d7 |
b3 |
z1 |
z4 |
SW |
| M12 |
8.5 |
8 |
8 |
27 |
1.75 |
7 |
7 |
| M16 |
12 |
12 |
12 |
31 |
2 |
8 |
10 |
| M20 |
15 |
14 |
13 |
36 |
2.5 |
9 |
11 |
| M24 |
18 |
14 |
16 |
42 |
3 |
8 |
11 |
| M27 |
20.5 |
18 |
18 |
47 |
3 |
10 |
13 |
| M30 |
23 |
18 |
21 |
50 |
3.5 |
12 |
13 |
| M33 |
25.5 |
25 |
24 |
53 |
3.5 |
14 |
22 |
| M36 |
27.5 |
25 |
26 |
57 |
4 |
14 |
22 |
| M39 |
30.5 |
28 |
30 |
60 |
4 |
14 |
24 |
| M42 |
32.5 |
28 |
32 |
64 |
4.5 |
15 |
24 |
| M45 |
35.5 |
32 |
34 |
66 |
4.5 |
15 |
27 |
| M48 |
37.5 |
32 |
37 |
70 |
5 |
19 |
27 |
| M52 |
41 |
36 |
40 |
74 |
5 |
18 |
30 |
| M56 |
44 |
40 |
45 |
79 |
5.5 |
19 |
32 |
