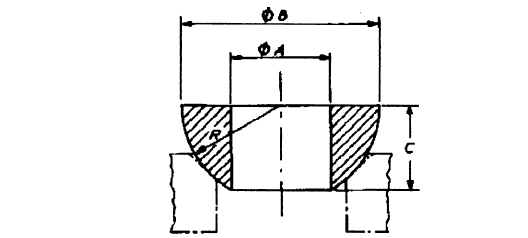

Dimensions of sperical washers
Dimensions of sperical washers
All dimensions in millimeters
| Sling rod dia.A |
A dia. |
B dia. |
C |
R rad. |
| 10 |
12 |
24 |
10 |
12 |
| 12 |
15 |
30 |
13 |
15 |
| 16 |
19 |
38 |
16 |
19 |
| 20 |
24 |
48 |
21 |
24 |
| 24 |
28 |
56 |
24 |
28 |
| 30 |
35 |
70 |
30 |
35 |
| 36 |
42 |
84 |
36 |
42 |
| 42 |
48 |
96 |
42 |
48 |
