BS 3974 Table 3 Dimensions

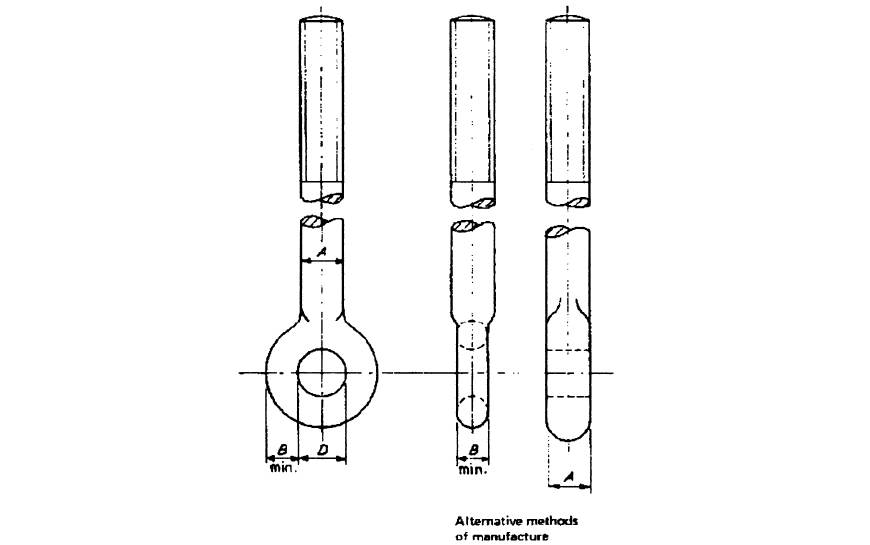

Dimensions of sling rod with integral forged eye
Dimensions of sling rod with integral forged eye
| sling rod dia.A | D | B.min. (0.7 A) | Safe working load |
|---|---|---|---|
| mm | mm | mm | kgf |
| 8 | 14 | 6 | 230 |
| 10 | 16 | 7 | 360 |
| 12 | 18 | 9 | 530 |
| 16 | 22 | 12 | 1 010 |
| 20 | 26 | 14 | 1 580 |
| 24 | 30 | 17 | 2 280 |
| 30 | 36 | 21 | 3 650 |
| 36 | 42 | 26 | 5 340 |
| 42 | 48 | 30 | 7 400 |
