BS 3974 Table 2 Dimensions

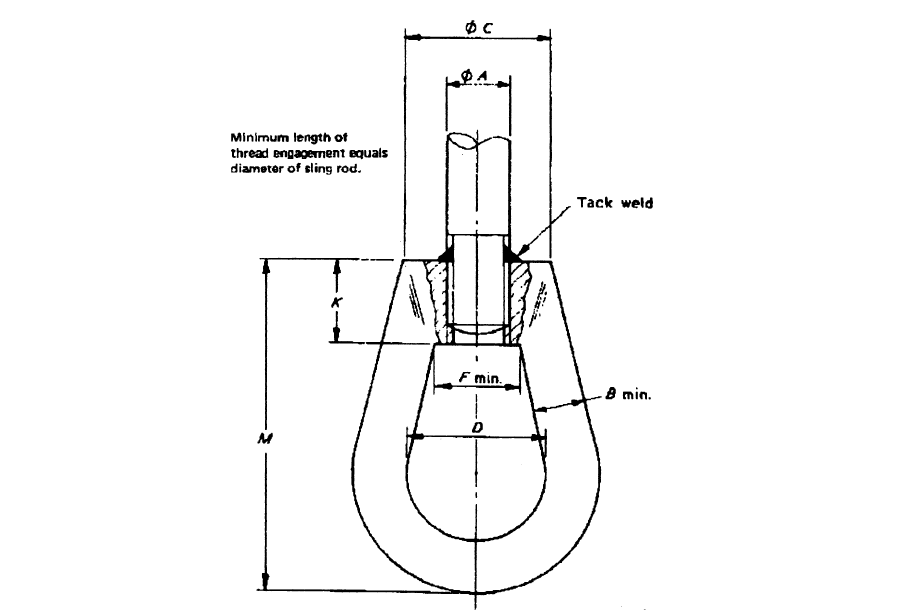

Dimensions of sling rod with weldless eye nut
Dimensions of sling rod with weldless eye nut
| sling rod dia.A |
D |
B.min. (0.7 A) |
C dia. |
F min. |
K |
M |
Safe working load |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
kgf |
| 8 |
25 |
6 |
32 |
12 |
16 |
64 |
230 |
| 10 |
25 |
7 |
32 |
14 |
16 |
64 |
360 |
| 12 |
30 |
9 |
38 |
16 |
18 |
73 |
530 |
| 16 |
30 |
12 |
38 |
20 |
18 |
73 |
1 010 |
| 20 |
40 |
14 |
45 |
24 |
25 |
102 |
1 580 |
| 24 |
50 |
17 |
50 |
28 |
28 |
124 |
2 280 |
| 30 |
75 |
21 |
70 |
34 |
38 |
146 |
3 650 |
| 36 |
75 |
26 |
70 |
40 |
38 |
146 |
5 340 |
| 42 |
100 |
30 |
80 |
46 |
45 |
180 |
7 400 |
