AS 1110 Part 1 Dimensions

This International Standard specifies the characteristics of hexagon head bolts with threads from M1,6 up to and including M64, of product grade A for threads M1,6 to M24 and nominal lengths up to and including 10d or 150 mm, whichever is the shorter, and product grade B for threads over M24 or nominal lengths over 10d or 150 mm, whichever is the shorter.

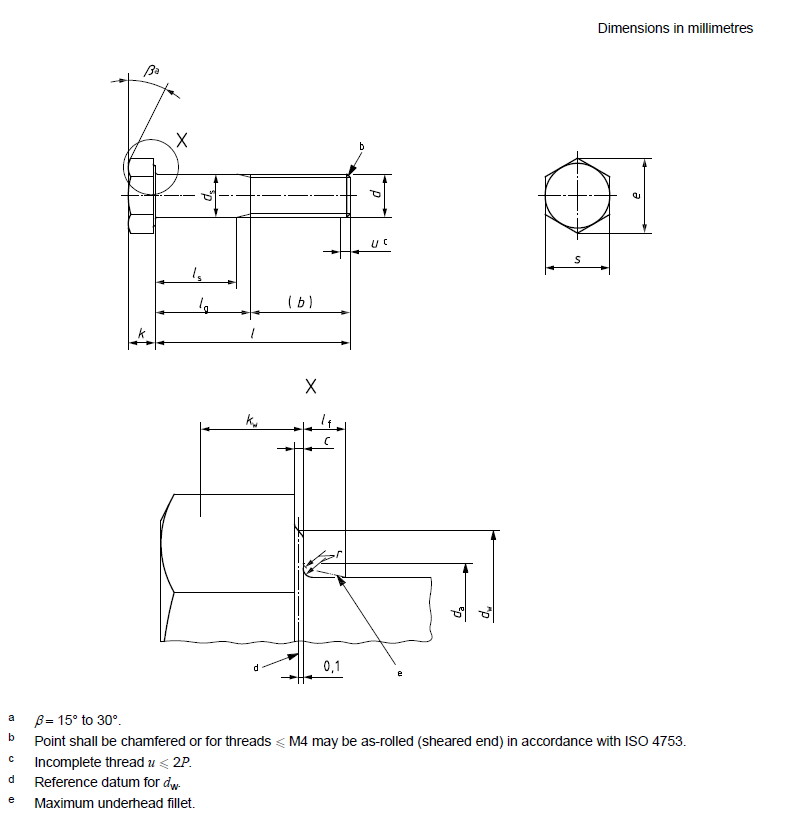

AS 1110 Part 1 :- Dimensions

AS 1110 Part 1

Preferred threads

Thread d M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
pa 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
b ref. b 9 10 11 12 14 16 18 22 26
c 15 16 17 18 20 22 24 28 32
d 28 29 30 31 33 35 37 41 45
c max. 0.25 0.25 0.25 0.40 0.40 0.50 0.50 0.60 0.60
min. 0.10 0.10 0.10 0.15 0.15 0.15 0.15 0.15 0.15
da max. 2.0 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2
ds nom. = max. 1.60 2.00 2.50 3.00 4.00 5.00 6.00 8.00 10.00
Product grade A min. 1.46 1.86 2.36 2.86 3.82 4.82 5.82 7.78 9.78
B 1.35 1.75 2.25 2.75 3.70 4.70 5.70 7.64 9.64
dw Product grade A min. 2.27 3.07 4.07 4.57 5.88 6.88 8.88 11.63 14.63
B 2.30 2.95 3.95 4.45 5.74 6.74 8.74 11.47 14.47
e Product grade A min. 3.41 4.32 5.45 6.01 7.66 8.79 11.05 14.38 17.77
B 3.28 4.18 5.31 5.88 7.50 8.63 10.89 14.20 17.59
lf max. 0.6 0.8 1 1 1.2 1.2 1.4 2 2
k nom. 1.1 1.4 1.7 2 2.8 3.5 4 5.3 6.4
Product grade A max. 1.225 1.525 1.825 2.125 2.925 3.65 4.15 5.45 6.58
min. 0.975 1.275 1.575 1.875 2.675 3.35 3.85 5.15 6.22
Product grade B max. 1.3 1.6 1.9 2.2 3.0 3.74 4.24 5.54 6.69
min. 0.9 1.2 1.5 1.8 2.6 3.26 3.76 5.06 6.11
kwe Product grade A min. 0.68 0.89 1.10 1.31 1.87 2.35 2.70 3.61 4.35
B 0.63 0.84 1.05 1.26 1.82 2.28 2.63 3.54 4.28
r min. 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4
s nom. = max. 3.20 4.00 5.00 5.50 7.00 8.00 10.00 13.00 16.00
Product grade A min. 3.02 3.82 4.82 5.32 6.78 7.78 9.78 12.73 15.73
B 2.90 3.70 4.70 5.20 6.64 7.64 9.64 12.57 15.57
Product grade ls and gf
A B
l ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.
nom. min. max. min. max.
12 11.65 12.35 -- -- 1.2 3 For sizes above the solid, bold, stepped line, ISO 4017 is recommended.
16 15.65 16.35 -- -- 5.2 7 4 6 2.75 5
20 19.58 20.42 18.95 21.05 8 10 6.75 9 5.5 8
25 24.58 24.42 23.95 26.05 11.75 14 10.5 13 7.5 11 5 9
30 29.58 30.42 28.95 31.05 15.5 18 12.5 16 10 14 7 12
35 34.5 35.5 33.75 36.25 17.5 21 15 19 12 17
40 39.5 40.5 38.75 41.25 22.5 26 20 24 17 22 11.75 18
45 44.5 45.5 43.75 46.25 25 29 22 27 16.75 23 11.5 19
50 49.5 50.5 48.75 51.25 30 34 27 32 21.75 28 16.5 24
55 54.4 55.6 53.5 56.5 32 37 26.75 33 21.5 29
60 59.4 60.6 58.5 61.5 37 42 31.75 38 26.5 34
65 64.4 65.6 63.5 66.5 36.75 43 31.5 39
70 69.4 70.6 68.5 71.5 41.75 48 36.5 44
80 79.4 80.6 78.5 81.5 51.75 58 46.5 54
90 89.3 90.7 88.25 91.75 56.5 64
100 99.3 100.7 98.25 101.75 66.5 74
110 109.3 110.7 108.25 111.75
120 119.3 120.7 118.25 121.75
Thread d M12 M16 M20 M24 M30 M36 M42 M48 M56 M64
pa 1.75 2 2.5 3 3.5 4 4.5 5 5.5 6
b ref. b 30 38 46 54 66 -- -- -- -- --
c 36 44 52 60 72 84 96 108 -- --
d 49 57 65 73 85 97 109 121 137 153
c max. 0.60 0.8 0.8 0.8 0.8 0.8 1.0 1.0 1.0 1.0
min. 0.15 0.2 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3
da max. 13.7 17.7 22.4 26.4 33.4 39.4 45.6 52.6 63 71
ds nom. = max. 12.00 16.00 20.00 24.00 30.00 36.00 42.00 48.00 56.00 64.00
Product grade A min. 11.73 15.73 19.67 23.67 -- -- -- -- -- --
B 11.57 15.57 19.48 23.48 29.48 35.38 41.38 47.38 55.26 63.26
dw Product grade A min. 16.63 22.49 28.19 33.61 -- -- -- -- -- --
B 16.47 22 27.7 33.25 42.75 51.11 59.95 69.45 78.66 88.16
e Product grade A min. 20.03 26.75 33.53 39.98 -- -- -- -- -- --
B 19.85 26.17 32.95 39.55 50.85 60.79 71.3 82.6 93.56 104.86
lf max. 3 3 4 4 6 6 8 10 12 13
k nom. 7.5 10 12.5 15 18.7 22.5 26 30 35 40
Product grade A max. 7.68 10.18 12.715 15.215 -- -- -- -- -- --
min. 7.32 9.82 12.285 14.785 -- -- -- -- -- --
Product grade B max. 7.79 10.29 12.85 15.35 19.12 22.92 26.42 30.42 35.5 40.5
min. 7.21 9.71 12.15 14.65 18.28 22.08 25.58 29.58 34.5 39.5
kwe Product grade A min. 5.12 6.87 8.6 10.35 -- -- -- -- -- --
B 5.05 6.8 8.51 10.26 12.8 15.46 17.91 20.71 24.15 27.65
r min. 0.6 0.6 0.8 0.8 1 1 1.2 1.6 2 2
s nom. = max. 18.00 24.00 30.00 36.00 46 55.0 65.0 75.0 85.0 95.0
Product grade A min. 17.73 23.67 29.67 35.38 -- -- -- -- -- --
B 17.57 23.16 19.16 35.00 45 53.8 63.1 73.1 82.8 92.8
Product grade ls and gf
A B
l ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.
nom. min. max. min. max.
50 49.5 50.5 -- -- 11.25 20
55 54.4 55.6 53.5 56.5 16.25 25
60 59.4 60.6 58.6 61.5 21.25 30
65 64.4 65.6 63.5 66.5 26.25 35 17 27
70 69.4 70.6 68.5 71.5 31.25 40 22 32
80 79.4 80.6 78.5 81.5 41.25 50 32 42 21.5 34
90 89.3 90.7 88.25 91.75 51.25 60 42 52 31.5 44 21 36
100 99.3 100.7 98.25 101.75 61.25 70 52 62 41.5 54 31 46
110 109.3 110.7 108.25 111.75 71.25 80 62 72 51.5 64 41 56 26.5 44
120 119.3 120.7 118.25 121.75 81.25 90 72 82 61.5 74 51 66 36.5 54
130 129.2 130.8 128 132 76 86 65.5 78 55 70 40.5 58
140 139.2 140.8 138 142 86 96 75.5 88 65 80 50.5 68 36 56
150 149.2 150.8 148 152 96 106 85.5 98 75 90 60.5 78 46 66
160 -- -- 158 162 106 116 95.5 108 85 100 70.5 88 56 76 41.5 64
180 -- -- 178 182 115.5 128 105 120 90.5 108 76 96 61.5 84 47 72
200 -- -- 197.7 202.3 135.5 148 125 140 110.5 128 96 116 81.5 104 67 92
220 -- -- 217.7 222.3 132 147 117.5 135 103 123 88.5 111 74 99 55.5 83
240 -- -- 237.7 242.3 152 167 137.5 155 123 143 108.5 131 94 119 75.5 103
260 -- -- 257.4 262.6 157.5 175 143 163 128.5 151 114 139 95.5 123 77 107
280 -- -- 277.4 282.6 177.5 195 163 183 148.5 171 134 159 115.5 143 97 127
300 -- -- 297.4 302.6 197.5 215 183 203 168.5 191 154 179 135.5 163 117 147
320 -- -- 317.15 322.85 203 223 188.5 211 174 199 155.5 183 137 167
340 -- -- 337.15 342.85 233 243 208.5 231 194 219 175.5 203 157 187
360 -- -- 357.15 362.85 243 263 228.5 251 214 239 195.5 223 177 207
380 -- -- 377.15 382.85 248.5 271 234 259 215.5 243 197 227
400 -- -- 397.15 402.85 268.5 291 254 279 235.5 263 217 247
420 -- -- 416.85 423.15 288.15 311 274 299 255.5 283 237 267
440 -- -- 436.85 443.15 308.5 331 294 319 275.5 303 257 287
460 -- -- 456.85 463.15 314 339 295.5 323 277 307
480 -- -- 476.85 483.15 334 359 315.5 343 297 327
500 -- -- 496.85 503.15 335.5 363 317 347

NOTE Preferred lengths are defined in terms of ls and lg:
-- for product grade A, above the discontinous, stepped line:
-- for product B, below this stepped line.

a   p is the pitch of the thread.
b   For lnom≤ 125 mm.
c   For 125 mm < lnom.≤ 200 mm.
d   For lnom > 200 mm.
e   kw.min = 0.7 kmin.
f   lg.max = lnom - b.
    lg.min = lg.max - 5 P.

Non-preferred threads

Thread d M3.5 M14 M18 M22 M27
pa 0.6 2 2.5 2.5 3
b ref. b 13 34 42 50 60
c 19 40 48 56 66
d 32 53 61 69 79
c max. 0.40 0.60 0.8 0.8 0.8
min. 0.15 0.15 0.2 0.2 0.2
da max. 4.1 15.7 20.2 24.4 30.4
ds nom. = max. 3.50 14.00 18.00 22.00 27.00
Product grade A min. 3.32 13.73 17.73 21.67 --
B 3.20 13.57 17.57 21.48 26.48
dw Product grade A min. 5.07 19.64 25.34 31.71 --
B 4.95 19.15 24.85 31.35 38
e Product grade A min. 6.58 23.36 30.14 37.29 --
B 6.44 22.78 29.56 37.29 45.2
lt max. 1 3 3 4 6
k nom. 2.4 8.8 11.5 14 17
Product grade A max. 2.525 8.980 11.715 14.215 --
min. 2.275 8.620 11.285 13.785 --
Product grade B max. 2.6 9.09 11.85 14.35 17.35
min. 2.2 8.51 11.15 13.65 13.65
kwb Product grade A min. 1.59 6.03 7.9 9.65 --
B 1.54 5.96 7.81 9.56 11.66
r min. 0.1 0.6 0.6 0.8 1
s nom. = max. 6.00 21.00 27.00 34.00 41
Product grade A min. 5.82 20.67 26.67 33.38 --
B 5.70 20.16 26.16 33.00 40
Product grade ls and lgf
A B
l ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.
nom. min. max. min. max.
20 19.58 20.42 -- -- 4 7
25 24.58 24.42 -- -- 9 12
30 29.58 30.42 -- -- 14 17
35 34.5 35.5 -- -- 19 22 For sizes above the dashed, bold, stepped line, ISO 4017 is recommended
40 39.5 40.5 38.75 41.25
45 44.5 45.5 43.75 46.25
50 49.5 50.5 48.75 51.25
55 54.4 55.6 53.5 56.5
60 59.4 60.6 58.5 61.5 16 26
65 64.4 65.6 63.5 66.5 21 31
70 69.4 70.6 68.5 71.5 26 36 15.5 28
80 79.4 80.6 78.5 81.5 26 46 25.5 38
90 89.3 90.7 88.25 91.75 46 56 35.5 48 27.5 40
100 99.3 100.7 98.25 101.75 56 66 45.5 58 37.5 50 25 40
110 109.3 110.7 108.25 111.75 66 76 55.5 68 47.5 60 35 50
120 119.3 120.7 118.25 121.75 76 86 65.5 78 57.5 70 45 60
130 129.2 103.8 128 132 80 90 69.5 82 61.5 74 49 64
140 139.2 140.8 138 142 90 100 79.5 92 71.5 84 59 74
150 149.2 150.8 148 152 89.5 102 81.5 94 69 84
160 -- -- 158 162 99.5 112 91.5 104 79 94
180 -- -- 178 182 119.5 132 111.5 124 99 114
200 -- -- 197.7 202.3 131.5 144 119 134
220 -- -- 217.7 222.3 138.5 151 126 141
240 -- -- 237.7 242.3 146 161
260 -- -- 257.4 262.6 166 181
Thread d M33 M39 M45 M52 M60
pa 3.5 4 4.5 5 5.5
b ref. b -- -- -- -- --
c 78 90 102 116 --
d 91 103 115 129 145
c max. 0.8 1.0 1.0 1.0 1.0
min. 0.2 0.3 0.3 0.3 0.3
da max. 36.4 42.4 48.6 56.6 67
ds nom. = max. 33.00 39.00 45.00 52.00 60.00
Product grade A min. -- -- -- -- --
B 32.38 38.38 44.38 51.26 59.26
dw Product grade A min. -- -- -- -- --
B 46.55 55.86 64.7 74.2 83.41
e Product grade A min. -- -- -- -- --
B 55.37 66.44 76.95 88.25 99.21
lt max. 6 6 8 10 12
k nom. 21 25 28 33 38
Product grade A max. -- -- -- -- --
min. -- -- -- -- --
Product grade B max. 21.42 25.42 28.42 33.5 38.5
min. 20.58 24.58 27.58 32.5 37.5
kwb Product grade A min. -- -- -- -- --
B 14.41 17.21 19.31 22.75 26.25
r min. 1 1 1.2 1.6 2
s nom. = max. 50 60.0 70.0 80.0 90.0
Product grade A min. -- -- -- -- --
B 49 58.8 68.1 78.1 87.8
Product grade ls and lgf
A B
l ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.		 ls
min.		 lg
max.
nom. min. max. min. max.
130 129.2 130.8 128 132 34.5 52 For sizes above the dashed, bold, stepped line, ISO 4017 is recommended
140 139.2 140.8 138 142 44.5 62
150 149.2 150.8 148 152 54.5 72 40 60
160 -- -- 158 162 64.5 82 50 70
180 -- -- 178 182 84.5 102 70 90 55.5 78
200 -- -- 197.7 202.3 104.5 122 90 110 75.5 98 59 84
220 -- -- 217.7 222.3 111.5 129 97 117 82.5 105 66 91
240 -- -- 237.7 242.3 131.5 149 117 137 102.5 125 86 111 67.5 95
260 -- -- 257.4 262.6 151.5 169 137 157 122.5 145 106 131 87.5 115
280 -- -- 277.4 282.6 171.5 189 157 177 142.5 165 126 151 107.5 135
300 -- -- 297.4 302.6 191.5 209 177 197 162.5 185 146 171 127.5 155
320 -- -- 317.15 322.85 211.5 229 197 217 182.5 205 166 191 147.5 175
340 -- -- 337.15 342.85 217 237 202.5 225 186 211 167.5 195
360 -- -- 357.15 362.85 237 257 222.5 245 206 231 187.5 215
380 -- -- 377.15 382.85 257 277 242.5 265 251 251 207.5 235
400 -- -- 397.15 402.85 262.5 285 246 271 227.5 255
420 -- -- 416.85 423.15 282.5 305 266 291 247.5 275
440 -- -- 436.85 443.15 302.5 325 286 311 267.5 295
460 -- -- 456.85 463.15 306 331 287.5 315
480 -- -- 476.85 483.15 326 351 307.5 335
500 -- -- 496.85 503.15 327.5 355

NOTE Preferred lengths are defined in terms of ls and lg:
-- for product grade A, above the discontinous, stepped line:
-- for product B, below this stepped line.

a   p is the pitch of the thread.
b   For lnom≤ 125 mm.
c   For 125 mm < lnom.≤ 200 mm.
d   For lnom > 200 mm.
e   kw.min = 0.7 kmin.
f   lg.max = lnom - b.
    lg.min = lg.max - 5 P.

Specifications and reference International Standards

Material Steel Stainless Steel Non-ferrouse metal
General
requirements		 International
Standard		 ISO 8992
Threads Tolerance class 6G
International
Standards		 ISO 724, ISO 965-1
Mechincal
properties		 Property classa d < 3 mm: as agreed
3 mm ≤ d ≤ 39 mm:
5.6, 8.8, 9.8, 10.9
d > 39 mm: as agreed 		d ≤ 24 mm: A2-70, A4-70
24 mm < d ≤ 39 mm:
A2-50, A4-50
d > 39 mm: as agreed 		Materials
specified in
ISO 8839.
International
Standards		 3 mm ≤ d ≤ 39 mm: ISO 898-1
d < 3 mm and
d > 39 mm: as agreed 		d ≤ 39 mm: ISO 3506-1
d > 39 mm: as agreed
Tolerances Product grade For d ≤ 24 mm and l ≤ 10 d or 150 mmb: A
For d > 24 mm or l > 10 d or 150 mmb: B
International
Standard		 ISO 4759-1
Finish -- Caoting As Processed
Requirements for elec-
troplating are specified
in ISO 4042.

Requirements for
non-electrolytically applied
zinc flake coatings are
spcified in ISO 10683.
 As processed As processed









Requirements for
electroplating are specified
in ISO 4042.
Additional requirements or other finishes or coatings shall be agreed between the supplier and the purchaser.
Surface integrity Limits for surface dis-
continuities are specified
feild in ISO 6157-1.		 -- --
Acceptability Acceptance inspection is specified in ISO 3269.
a Other property classes are specified in ISO 898-1 for steel and ISO 3506-1 for stainless steel.
b Whichever is the shorter.

Designation

Example A hexagon head bolt with thread size M12, nominal length l = 80 mm property class 8.8 is desginated as follows:

Hexagon head bolt ISO 4014 - M12 x 80 - 8.8

Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 225, Fasteners — Bolts, screws, studs and nuts — Symbols and descriptions of dimensions
ISO 724, ISO general-purpose metric screw threads — Basic dimensions
ISO 898-1, Mechanical properties of fasteners made of carbon steel and alloy steel — Part 1: Bolts, screws and studs with specified property classes — Coarse thread and fine pitch thread
ISO 965-1, ISO general-purpose metric screw threads — Tolerances — Part 1: Principles and basic data
ISO 3269, Fasteners — Acceptance inspection
ISO 3506-1, Mechanical properties of corrosion-resistant stainless steel fasteners — Part 1: Bolts, screws and studs
ISO 4017, Hexagon head screws — Product grades A and B
ISO 4042, Fasteners — Electroplated coatings
ISO 4753, Fasteners — Ends of parts with external ISO metric thread
ISO 4759-1, Tolerances for fasteners — Part 1: Bolts, screws, studs and nuts — Product grades A, B and C
ISO 6157-1, Fasteners — Surface discontinuities — Part 1: Bolts, screws and studs for general requirements
ISO 8839, Mechanical properties of fasteners — Bolts, screws, studs and nuts made of non-ferrous metals
ISO 8992, Fasteners — General requirements for bolts, screws, studs and nuts
ISO 10683, Fasteners — Non-electrolytically applied zinc flake coatings
